Quantity in Stock: Osight X Red Dot Sight — X-treme Window Size. Unmatched Performance.
The Osight X sets a new benchmark for competition-grade and tactical optics. Engineered with a massive field of view, the Osight X delivers lightning-fast target acquisition and superior situational awareness. It features the industry’s first magnetic charging cover with an integrated battery indicator and OAL™ housing—a proprietary material that rivals 7075 aluminum in strength but keeps weight minimal. Whether on the range or in duty use, this optic combines durability, convenience, and precision in one rugged package.
Why Shooters Choose the Osight X
- Magnetic Charging Cover: Displays real-time charge levels for both optic and cover—always know your power status.
- Massive Field of View: 0.94″ × 0.85″ lens maximizes peripheral visibility for faster target transitions.
- 3 MOA Dot & 32 MOA Circle Reticle: Choose dot-only, circle-only, or both for rapid or precise aiming.
- Durable OAL™ Housing: High-strength composite material nearly as tough as 7075-T6 aluminum.

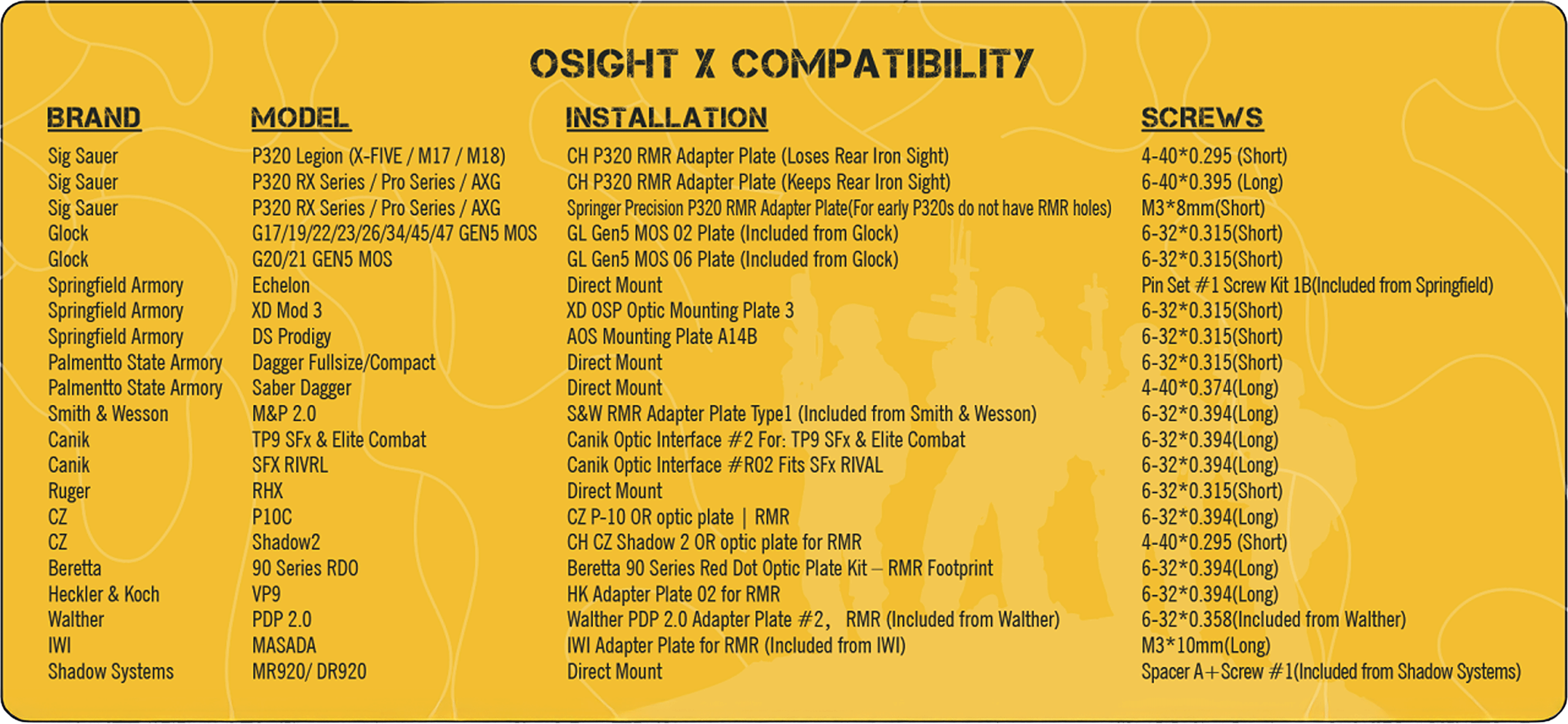

- Common Mount Footprint: Compatible with standard Ruggedized Miniature Reflex (407C/507C) patterns.
- Flexible Auto-Sensing Brightness: Automatic light adjustment with manual fine-tuning for preference control.
- Long Battery Life: 57,000-hour runtime (dot-only, Mode 3) with a cover that can recharge the optic up to three times.
- Quick Magnetic Recharging: Snap-on charging through the cover, or recharge via USB-C anytime, anywhere.
- Motion Sensor: Auto-wake on movement, power-down after 10 minutes of inactivity.
- Water & Dust Protection: IPX6-rated design for all-weather reliability.
Technical Specifications
| Reticle Type | 3 MOA Dot & 32 MOA Circle |
| Reticle Color | Red (660 nm) |
| Magnification | 1× (parallax-free / unlimited eye relief) |
| Adjustment Per Click | 1 MOA (± 45 MOA range) |
| Brightness Settings | 12 (10 Daylight + 2 Night Vision) |
| Battery / Power Source | Built-in 170 mAh Li-Polymer Battery / Magnetic Charging Cover (800 mAh) |
| Runtime (Max) | Up to 57,000 Hours (dot-only Mode 3) |
| Charging Type | Magnetic (optic) / USB-C (cover) |
| Footprint | Standard Ruggedized Miniature Reflex (407C / 507C pattern) |
| Lens Type | Multi-coated anti-reflective glass |
| Window Size | 0.94″ × 0.85″ (24 × 21.5 mm) |
| Dimensions (L × W × H) | 1.77″ × 1.18″ × 1.30″ (45 × 30 × 33 mm) |
| Weight | 1.62 oz (46 g) |
| Housing Material / Rating | OAL™ Composite / IPX6 Waterproof |
What’s Included
- Osight X Optic (with magnetic charging port)
- Magnetic Charging Cover (with battery indicator)
- USB-C Charging Cable & Silicone Lanyard
- Adjustment Tool, Pouch & Cleaning Cloth
- User Manual & READ ME Card
- Screw Box with multiple mounting sets (M3, #4-40, #6-32, #6-40)
Mounting Note: Apply medium (blue) threadlocker and torque to 15–17 in-lbs per the included instructions. Use adapter plates when required for non-standard optic cuts.
Warranty & Support
Backed by a Lifetime Warranty. Right To Bear customers enjoy expert support, fast shipping, and trusted service from our veteran-owned team.
